| DVR | ||
| Main Processor | Dual-core embedded processor | |
| IP Camera Input | 4/8 Channel | |
| Two-Way Talk | N/A | |
| Interface | 1 HDMI, 1 VGA | |
| Resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
|
| Decoding Capacity | 1ch@8MP 30fps, 4ch@1080P 30fps | |
| Multi-Screen Display | 1/4 | |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording | |
| Compression | H.265+/ H.264+/ H.265/ H.264 | |
| Resolution | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 720P/ D1 & etc | |
| Record Rate | 80Mbps | |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Trigger Event | Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips | |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), and Tampering | |
| Alarm Input | N/A | |
| Relay Output | N/A | |
| Sync Playback | 1/4 | |
| Search Mode | Time /Date, MD and Exact Search (accurate to second) | |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Third Party Support | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more |
|
| Interface | 1 RJ-45 port (10/100Mbps) | |
| Ethernet Port | IEEE802.11b/g/n(2.4GHz) | |
| PoE | N/A | |
| Network Function | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P | |
| Optical Fiber Interface | N/A | |
| Maximum User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android | |
| Interoperability | ONVIF 2.4, SDK, CGI | |
| Internal HDD | 1 SATA III Port, up to 4TB capacity for each HDD | |
| HDD Mode | Single | |
| eSATA | N/A | |
| USB | 2 ports (2 USB2.0) | |
| RS232 | N/A | |
| RS485 | N/A | |
| Power Supply | Single, DC12V/2A | |
| Power Consumption | 0°C ~ +40°C (+32°F ~ +104°F), 86 ~ 106kpa | |
| Operational Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH | |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH | |
| Dimensions | Compact 1U, 226mm×226.9mm×40.4mm (8.9" x 8.9" x 1.6") |
|
| Net Weight | 1.3 kg (2.9lb) (without HDD) | |
| Gross Weight | 2.0 kg(4.4 lb)(without HDD) | |

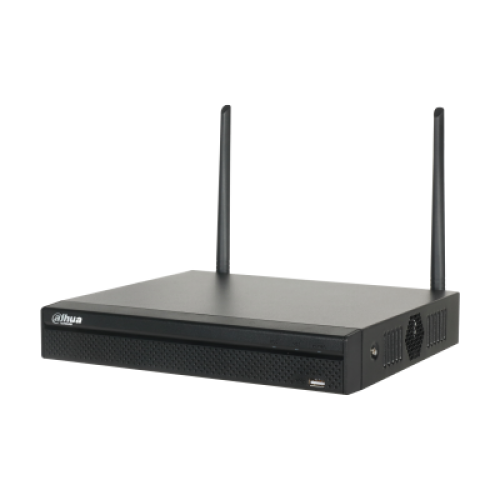

Dahua NVR2104HS-W-4KS2 is Dahua's third-generation network video recorder with an embedded Wi-Fi module to support wireless AP function, support automatic detection and connection of IP camera from Dahua without any operation. In addition, it has two-antenna for a strong wireless network signal. IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi covers the wider and further area. Also, this NVR can support wire IP camera accessing, making the installation more flexible. Without the limitation of the network cable, this NVR is ideal for a wide range of applications such as home safety, cafe, retail, grocery, education, and other industries. It features an open architecture that supports multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras. 8MP resolution is a revolutionary breakthrough in image processing technology. 8MP delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 8MP resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas. Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at any time from virtually anywhere. It has a 1-year warranty.
