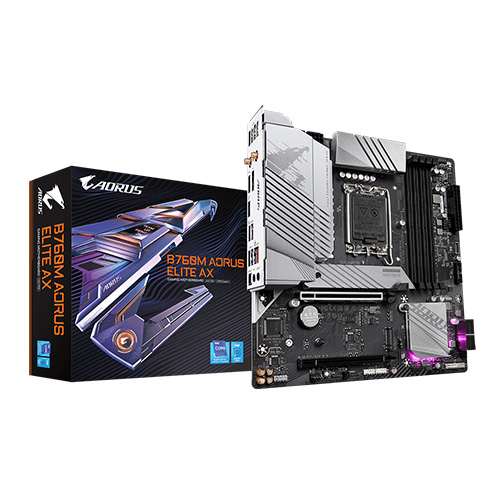

/gigabyte-b760m-aorus-elite-ax-10-ddr5-intel-matx-motherboard.jpg--500x500.jpg "GIGABYTE B760M AORUS ELITE AX DDR5 13th and 12th Gen Intel mATX Motherboard")
| Motherboard | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
|
| Memory Type | DDR5 | |
| Memory Slots | 4 | |
| Supported Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| HDMI | 1 X HDMI Port | |
| USB (s) | 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors |
|
| Audio | 1 x front panel audio header 2 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Manufacturing Warranty | 3 Years | |
The GIGABYTE B760M AORUS ELITE AX DDR5 is a micro ATX motherboard designed for usage with Intel CPUs from the 13th and 12th generations. It boasts a Twin 12*+1+1 Phases Digital VRM Solution for unrivaled performance, dual channel DDR5 memory with 4 SMD DIMMs, and XMP 3.0 compatibility. In addition, the motherboard includes two PCIe 4.0 x4 M.2 ports for next-generation storage, a superior thermal design, and M.2 Thermal Guard to assure VRM power stability and M.2 SSD performance. Furthermore, the EZ-Latch Plus function enables rapid release and screwless M.2 connection design. 2.5GbE LAN and Intel Wi-Fi 6E 802.11ax offer network connectivity, while the motherboard also has front USB-C 10Gb/s, back USB-C 20Gb/s, DP, and HDMI for additional connectivity. The Smart Fan 6 feature contains numerous temperature sensors as well as hybrid fan headers with FAN STOP, and the Q-Flash Plus allows you to update the BIOS without having to install the CPU, RAM, or graphics card.
In Bangladesh, you can get the original GIGABYTE B760M AORUS ELITE AX DDR5 13th and 12th Gen Intel mATX Motherboard From Sys Computers Ltd. We have a large collection of the latest GIGABYTE Intel Motherboard to purchase for your Desktop PC. Order Online Or Visit our Shop to get yours at the lowest price. The GIGABYTE B760M AORUS ELITE AX DDR5 Motherboard comes with 3 years warranty.
The latest price of GIGABYTE B760M AORUS ELITE AX DDR5 13th and 12th Gen Intel Motherboard in Bangladesh is 23800 taka. You can buy the GIGABYTE B760M AORUS ELITE AX DDR5 13th and 12th Gen Intel Motherboard at best price from our website or visit our showroom.
