| Motherboard | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
|
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design |
|
| PCI | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x1 Slot |
|
| Memory Type | ual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 256GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 * 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
|
| Memory Slots | 4 | |
| Supported Memory | upports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) |
|
| Maximum Memory | 256gb | |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
|
| USB (s) | Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
|
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Supported Storage | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|
| Internal I/O Ports | 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Manufacturing Warranty | 03 Years Warranty | |

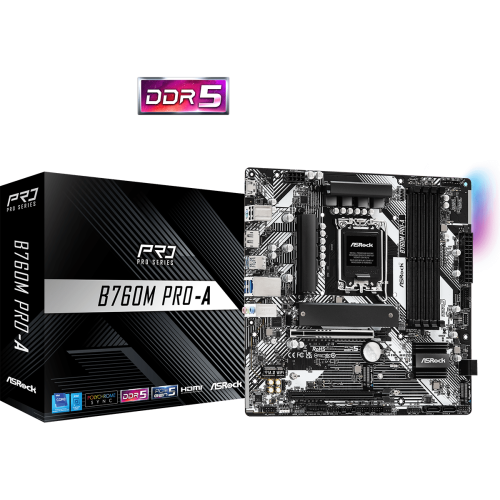

Professionals and gamers alike can expect top-notch performance from the ASRock B760M Pro-A Intel Motherboard. This motherboard ensures compatibility with the newest CPUs by supporting 14th, 13th, and 12th Gen Intel® CoreTM processors, powered by the Intel® B760 chipset. With two DDR5 DIMM slots, dual-channel DDR5 memory technology offers a maximum system memory capacity of 128GB and supports speeds up to 7200+ MHz (OC), making it perfect for multitasking and demanding workloads. It also boasts cutting-edge capabilities.This motherboard is built for rock-solid durability with a 7+1+1 power phase design and ASRock’s Intel® 4-Layer Memory POOL technology, ensuring stable and reliable power delivery. The 2.5G LAN provides ultrafast connectivity, perfect for high-speed internet access and low-latency gaming. The inclusion of ASRock's Auto Driver Installer simplifies system updates, ensuring your system is always running the latest drivers.With four SATA3 ports and one Hyper M.2 and one Ultra M.2 socket that support PCIe Gen4x4 and Gen3x4 modes, the B760M Pro-A provides a range of storage options. With support for RAID 0, 1, 5, and 10, customers may choose from a variety of solutions for data management and protection, speed, and state-of-the-art capabilities.Up to 8K @ 60Hz resolution screens are supported for consumers to enjoy using HDMI 2.1 and DisplayPort 1.4 outputs. For those looking for a high-performance, long-lasting motherboard with cutting-edge features and seamless communication, the ASRock B760M Pro-A is the best option.The ASRock B760M Pro-A Intel Motherboard comes with a 3 year warranty.
