| Motherboard | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
|
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm |
|
| Memory Type | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase -ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer |
|
| Memory Slots | 2 | |
| Supported Memory | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) |
|
| Graphics | Intel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
|
| USB (s) | 1 x USB 3.2 Gen1 Type-C (Rear) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|
| Internal I/O Ports | I/O ports 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Manufacturing Warranty | 03 Years Warranty | |

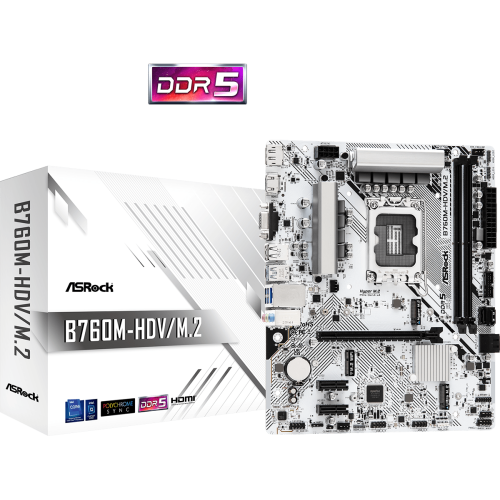

Pros and enthusiasts alike will find the ASRock B760M-HDV/M.2 Intel Motherboard to be a wonderful choice due to its exceptional performance engineering. This motherboard is designed for maximum productivity and is compatible with Intel® CoreTM 12th, 13th, and 14th generation processors (LGA1700) thanks to its Dual Channel DDR5 Memory Technology. Requiring no less than 128GB of DDR5 non-ECC, unbuffered memory to reach speeds of up to 7200+(OC), it ensures that your system can effortlessly manage intensive tasks.The 7+1+1 Power Phase Design ensures unwavering longevity, while ASRock's cutting-edge Intel® 4-Layer Memory POOL Technology improves signal integrity to provide higher overclocking capability. 2.5G LAN ensures ultrafast connectivity and offers blazingly fast network speeds perfect for streaming, gaming, and data-intensive jobs.A PCIe 4.0 x16 slot for high-performance GPUs and several M.2 slots supporting PCIe Gen4x4 and Gen3x4 NVMe SSDs for quick storage solutions are just two of the motherboard's many extension possibilities. With a wide range of rear I/O options—including DisplayPort 1.4 and HDMI 2.1—users may experience breathtaking images with up to 8K quality. Furthermore, the ASRock Auto Driver Installer simplifies setup and guarantees quick system startup.The ASRock B760M-HDV/M.2 Intel Motherboard provides the ideal balance of robustness, speed, and state-of-the-art capabilities, whether you're building a high-performance gaming setup or a productivity powerhouse.The ASRock B760M-HDV/M.2 Intel Motherboard comes with a 3 year warranty.
